BLOCK

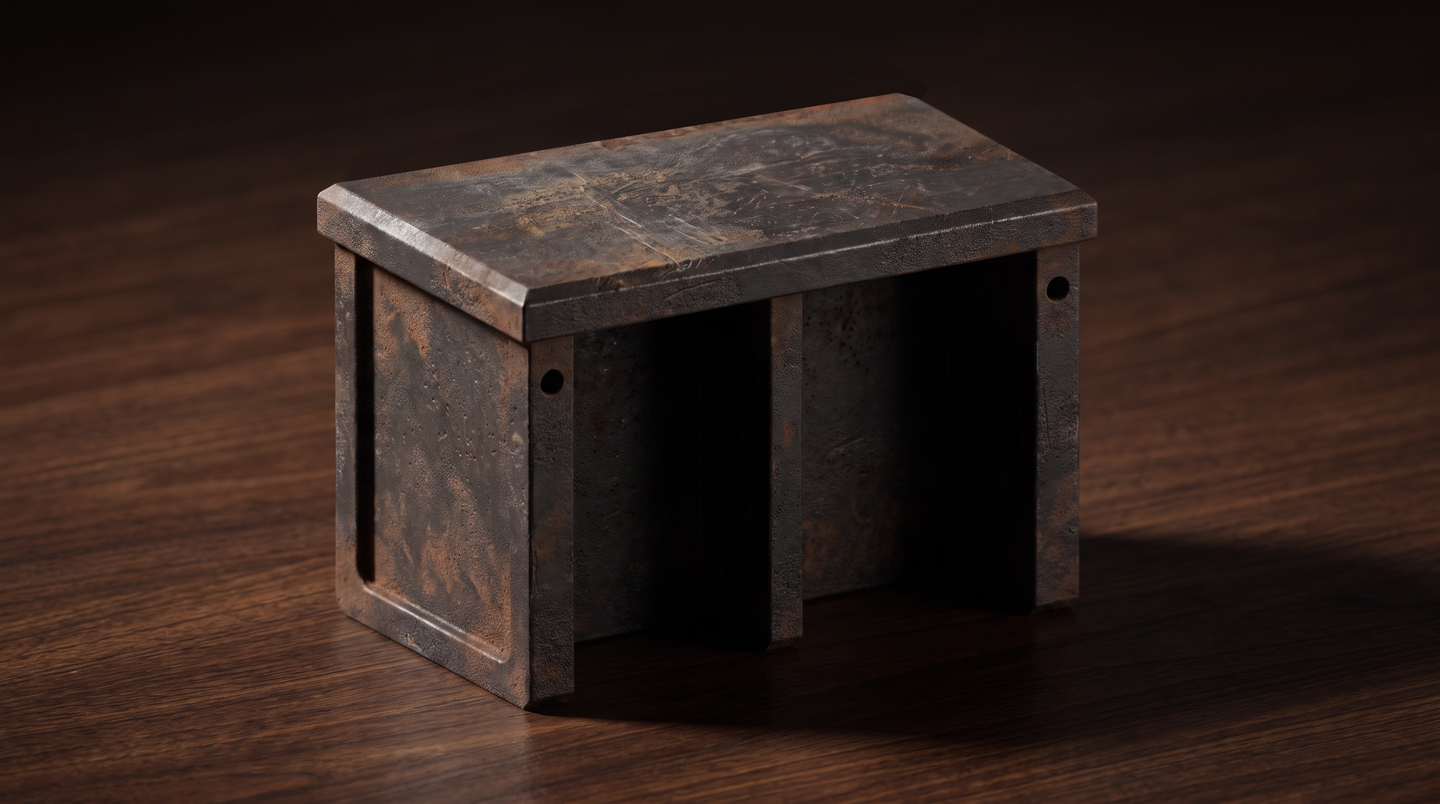

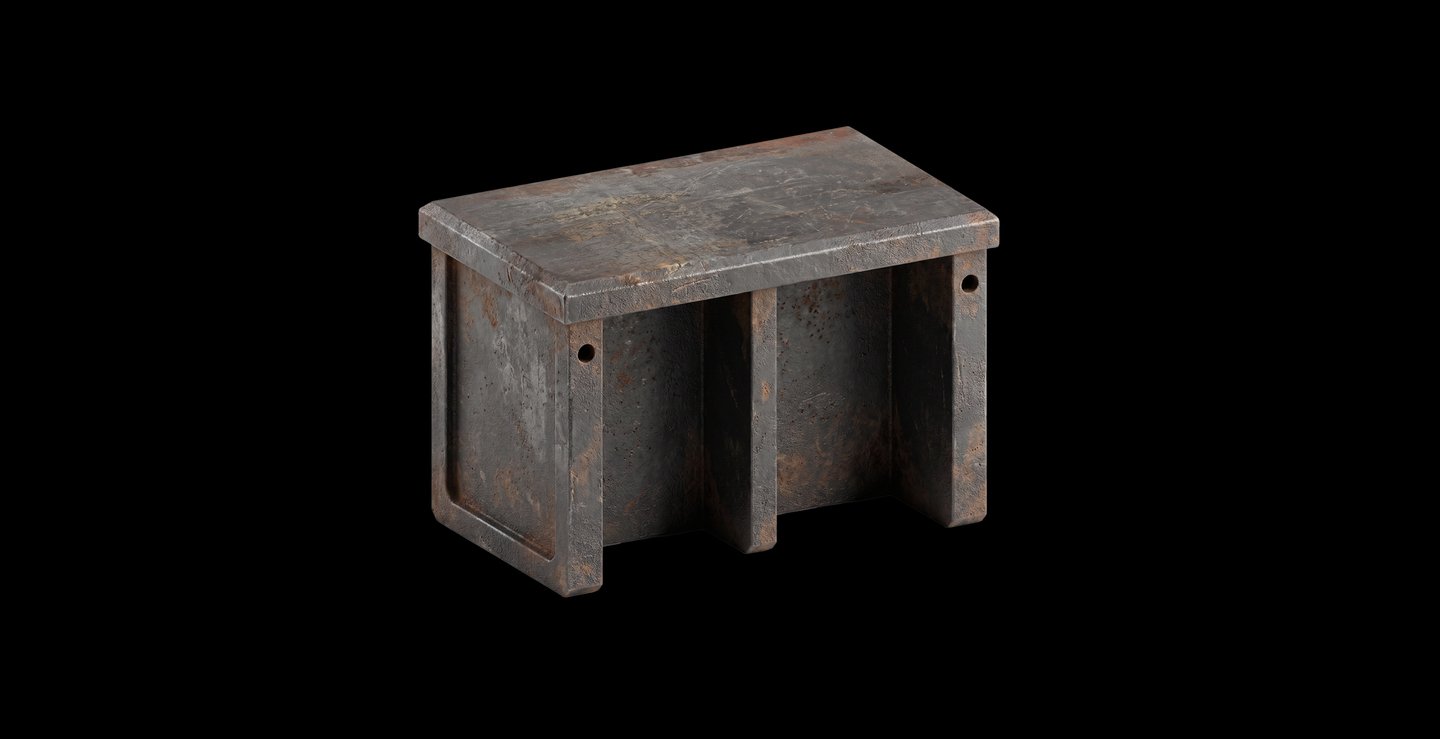

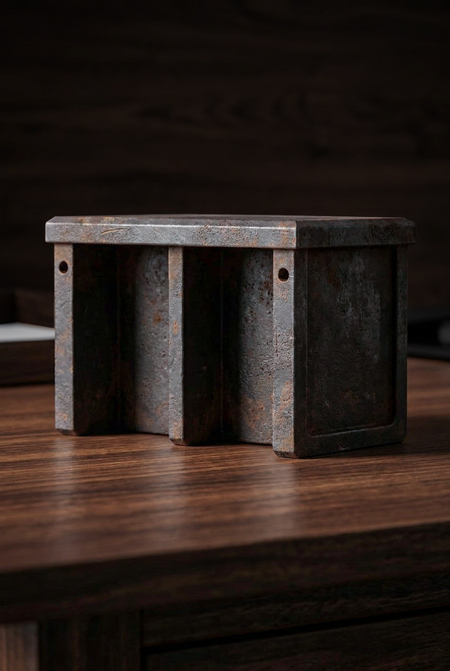

While working on the «Petrovsky Dock Project, ” I learned about the existence of a procedural element in maritime affairs and ship repair called a keelson block. Its concise form inspired me to create the press-paste „KEELSON BLOCK, ” which serves as a souvenir for visitors to Kronstadt and the Petrovsky Dock, specifically.

Material // Gray cast iron, Grade SCh20, GOST 1412-85.

Construction // Fully cast. Exterior bevels are executed according to the model; internal joints include radii necessary for high-quality casting.

Surface Treatment // Decorative chemical patination (red rust patina) + protective finish in the form of a transparent matte coating

Dimensions (in mm) // 100×60×70 (see dimensional drawings for details)

Note: Drawings are included in the set of production files

Production Plan:

1 // Produce tooling and a sand mold from the 3D model
2 // Cast a solid part from gray cast iron Fe20
3 // After cooling, remove the risers (auxiliary elements), clean the surface, and treat the supports
4 // Apply patination, dry, and cover with a matte protective lacquer

Shipping—in an individual cardboard box with cushioning paper filler. Kraft excelsior is placed beneath and around the product to restrict movement and protect against mechanical damage.

HSE Art and Design School SPb 2026
